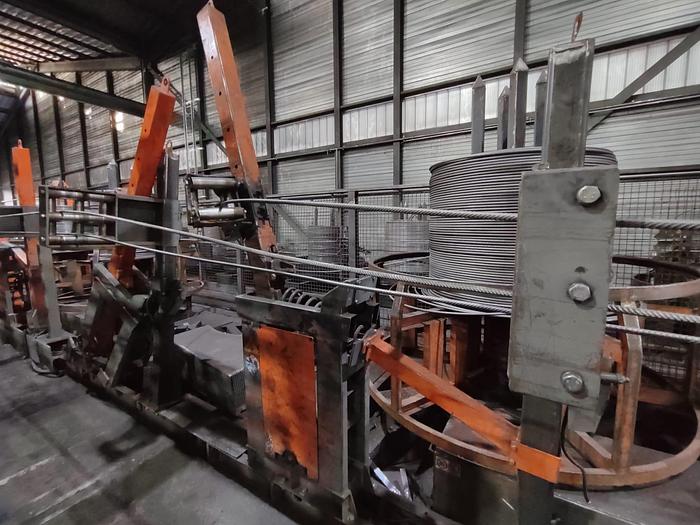

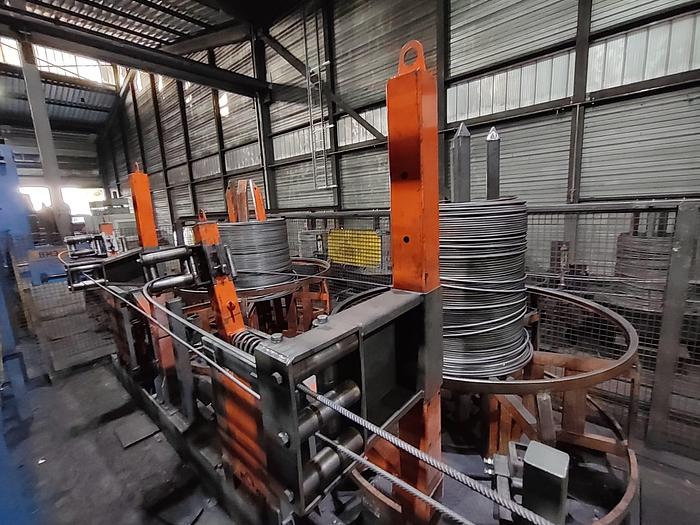

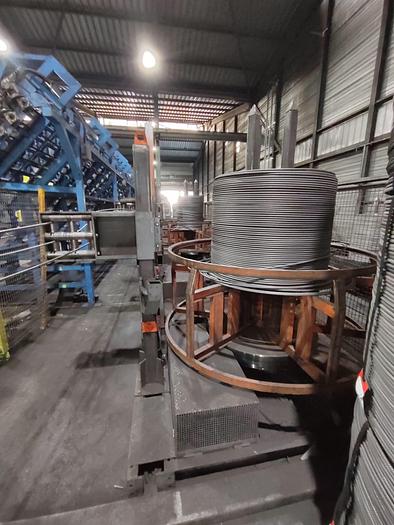

SCHNELL model COIL 16 - automatic stirrup bender from coil

Machine in function

Bi-directional automatic stirrup bender from coil for the production of stirrups and cut-to-size bars using wires up to Ø 16 mm (#5).

Driven by digital electric servomotors.

Also available HS version machine.

Coil 16 automatic stirrup benders are equipped with:

- Max. pulling speed: 140 m/min (460 ft/min) - HS Version: 200 m/min (660 ft/min)

- Anti-Twist device (Optional)

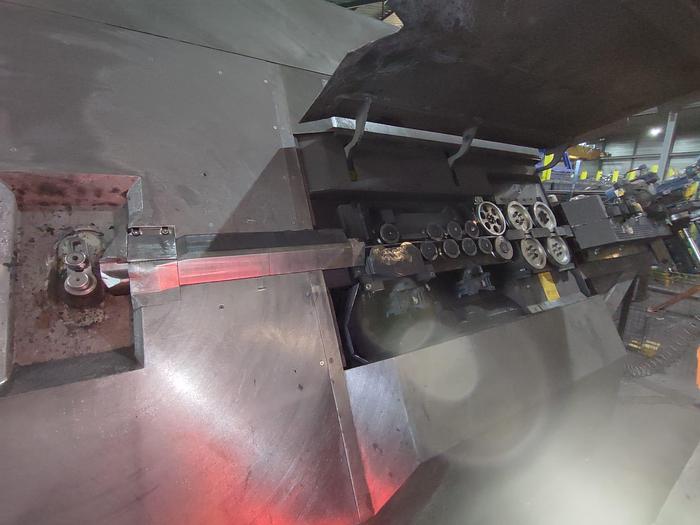

- 4 pulling drive wheels

- Cutting with Brushless motors with adjustable wire guide, reversible mobile and fixed cutting blades

- Pneumatic stirrup collector flap

- Web Teleassistance

- 3D version for the production of tri-dimensional pieces.

- Processed wire type: Coil

- Single strand: 1 Ø 6+16 mm (#5)

- Double strand: 2 Ø 6+13 mm (#4)

- Pulling speed: 140 m/min (460 ft/min)

- HS version: 200 m/min (660 ft/min)

- Bending speed: 1650 °/sec

- Average power consumption: 3 kWh
